ABOUT EQUIPMENT

The UFMG Futebol Testbed is planning an environment to experimentation with wireless technologies (WiFi, 3G, 4G, 5G), Software-Defined Radio, Software-Defined Network, Internet of Things, Wireless-Optical integration. Our testbed includes the following EQUIPMENT:

See more details about the UFMG testbed topology.



  • Virtualization and Control Server
    • 8 Dell Alienware Alpha R2 Mini Gaming PCs

    Processor: 6th Generation Intel® Core™ i7 6700T (8MB Cache, up to 3.6 GHz) Video Card: NVIDIA® GeForce® GTX960 GPU 4GB GDDR5
    Memory: 16GB DDR4 at 2133MHz – 1 DIMM
    Hard Drive: 1TB (64MB Cache) 7200 RPM SATA 6Gb/s
    Wireless: Intel® Dual Band Wireless-AC 8620 2×2 + Bluetooth 4.2
Read More



  • 1 Dell PowerEdge R430 Rack Server
    Processor: Intel® Xeon® E5-2609 v3 1.9GHz, 15M Cache, 6.40GT/s QPI, without Turbo, without HT, 6C/6T (85W) Max Mem 1600MHz
    Memory: 16GB RDIMM, 2133MT/s, DR, x4, BCC
    Hard Drive: 1TB, 7.2K, RPM, SATA, 6Gbps, 3.5in Hot-plug Hard Drive
    On-Board Broadcom 5720 4 Port, 1Gb, LOM
Read More



  • Switches
    • 1 Pica8 P-3297



    48 x 1G-T and 4 x 10G
    Triumph 2 switch ASIC with extended TCAM
    Pre-loaded with PicOS software for full Layer-2, Layer-3, OpenFlow, and CrossFlow SDN feature support
Read More



  • Wireless
    • 4 USRP B200 SDR Kit with GPSDO, Antenna and a USB 3.0 Cable

    The first fully integrated USRP device with continuous RF coverage from 70 MHz –6 GHz
    Full duplex operation with up to 56 MHz of real time bandwidth (61.44MS/s quadrature)
    Fast and convenient bus-powered connectivity using SuperSpeed USB 3.0
    GNURadio and OpenBTS support through the open-source USRP Hardware Driver™ (UHD)
    Open and reconfigurable Spartan 6 XC6SLX75 FPGA with free Xilinx tools (for advanced users)
    Early access prototyping platform for the Analog Devices AD9364 RFIC, a fully integrated direct conversion transceiver with mixed signal baseband
Read More

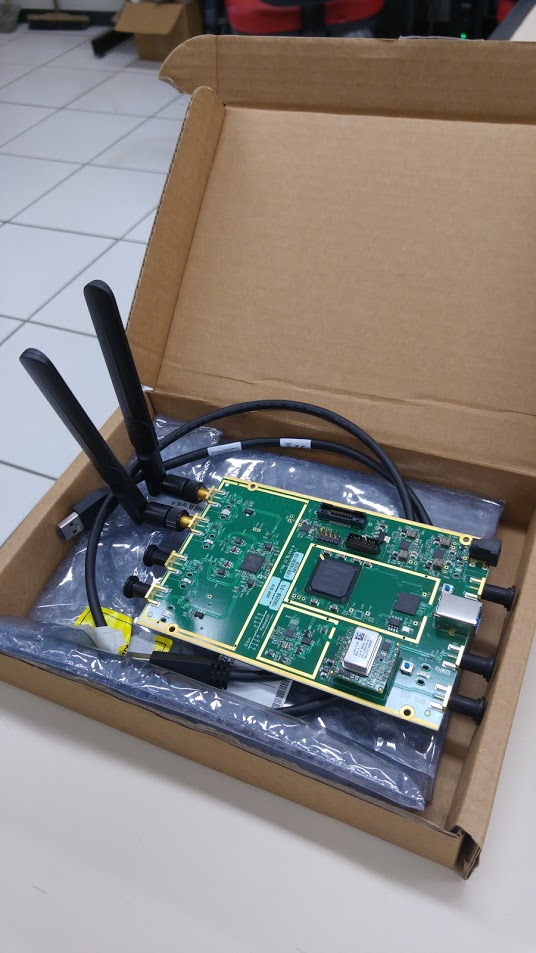

  • 4 USRP B210 SDR Kit with GPSDO, Antenna and a USB 3.0 Cable
    First fully integrated, two-channel USRP device with continuous RF coverage from 70 MHz – 6 GHz
    Full duplex, MIMO (2 Tx & 2 Rx) operation with up to 56 MHz of real-time bandwidth (61.44MS/s quadrature)
    GNURadio and OpenBTS support through the open-source USRP Hardware Driver™ (UHD)
    Open and reconfigurable Spartan 6 XC6SLX150 FPGA (for advanced users)
    Open and reconfigurable Spartan 6 XC6SLX75 FPGA with free Xilinx tools (for advanced users)
    Early access prototyping platform for the Analog Devices AD9361 RFIC, a fully integrated direct conversion transceiver with mixed signal baseband
Read More



  •  IoT Devices
    • 16 Raspberry Pi 3 Model B

    A 1.2GHz 64-bit quad-core ARMv8 CPU
    802.11n Wireless LAN
    Bluetooth 4.1
    Bluetooth Low Energy (BLE)
    1GB RAM
    4 USB ports
    40 GPIO pins
    Full HDMI port
    Ethernet port
    Combined 3.5mm audio jack and composite video
    Camera interface (CSI)
    Display interface (DSI)
    Micro SD card slot (now push-pull rather than push-push)
    VideoCore IV 3D graphics core
Read More



  • Sensor
    •  16 Advanticsys MTM-CM5000-MSP

    IEEE 802.15.4 WSN mote fully compatible with TelosB platform
    TI MSP430F1611 Microcontroller, CC2420 RF Chip
    TinyOS 2.x & ContikiOS Compatible
    Temperature, relative humidity & Light sensors
    User & Reset Buttons
    3xLeds
    USB Interface
    2xAA Batteries included
Read More
